Shutter with 180mm x 180mm aperture

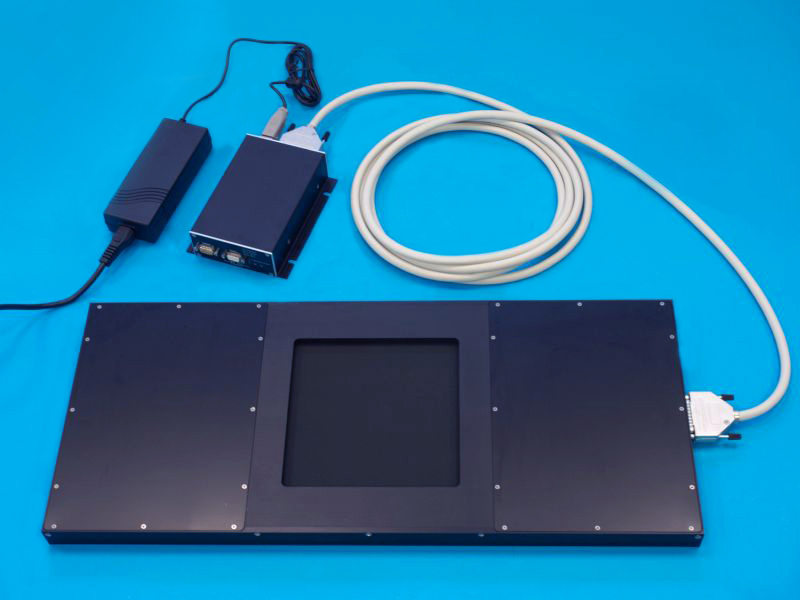

The Shutter system consists of:
- The mechanical shutter unit with cable.
- The shutter control unit with firmware and power supply.
- The shutter documentation.
Mechanical Shutter Unit:
Shutter type:
Slit-type shutter with two independent blades driven by stepper motors
Mass: ca. 5.0 kg
Aperture: 180mm x 180mm
Blade material: Carbon fiber. Low reflectivity is achieved by a stable, resistant, black paint
Minimum exposure time: < 10ms
Exposure time error: < 300µs
Exposure non-uniformity: < 1ms over the full field of view
Shutter Control Unit with external power supply:
Dimensions: about 230mm x 130mm x 45mm (connectors attached), 1 kg
Signal lines: Shutter open/close + 3 status lines,
more status information and parameter setting via RS232
Push buttons (3): open/close, reset, auto-calibration
Shutter cable specs: Length: TBD, 8m maximum, Diameter: 10mm, Bending radius: 20mm, Connectors: 2 DB-25 (male/female)
Power supply: 170mm x 65mm x 40mm, 0.6 kg, 95|230VAC and 50|60Hz
Documentation:
User manual: Installation and operation instructions, Software protocol description
Downloads:
Data sheet (PDF)
Dimension drawing (PDF)
CAD models (zipped STEP)
Shutter electronics box, 2D and 3D
